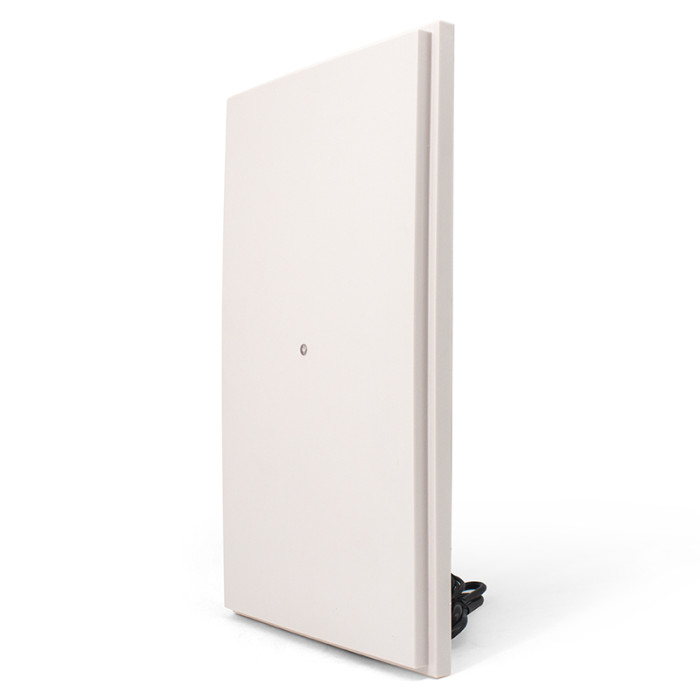

UHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access Management

UHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access Management

UHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access Management
UHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access ManagementUHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access ManagementUHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access ManagementUHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access ManagementUHF RFID Reader| Yanzeo R786 |12m Long Range UHF Integrated Reader Outdoor IP67 10dbi Antenna USB RS232/RS485/Wiegand Output For Access Management
CategoriesIntegrated RFID reader
BrandYanzeo Pro RFID & BarCode Solutions
ModelYanzeo R786
BrandYanzeo
ModelYanzeo R786
FOB portGuangzhou
Terms of PaymentT/T, Paypal
Update TimeDec 15,2024
Detail Information
  • Yanzeo R786, UHF RFID Reader Long Range 12m Outdoor, IP67, 10dbi Antenna RJ45 USB RS232/RS485/Wiegand Output UHF Integrated Reader




  • Product specification

  • Support ISO18000-6C (EPC GEN2) international standards;
  • Integrated structure design, beautiful appearance, suitable for outdoor environment;
  • Integrate high-performance linear polarized antennas, Recognize the long range distance stably;
  • Supports tag echo signal detection, tag data filtering, clock stamping, and input and output functions;
  • Recognition speed is fast, and the identification of single label can reach 140 times/second;
  • Adopt frequency hopping working mode, strong anti-interference ability and high recognition sensitivity;
  • Support development in multiple languages, such as VC, VB, C, etc.
  • Supports online upgrades, has a rich communication interface, and can be customized to the needs of users.

  • Application

  • Warehouse Management
  • Supply Chain Management
  • Vehicle Management
  • Line Management
  • Source Management
  • Asset Management
  • Personnel Management
  • Attendance Management
  • Product Anti-counterfeiting Management

Technical parameters


model R785-10DB
Supported protocols ISO18000-6C(EPC GEN2)
working frequency ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized)
Operation mode FHSS
RF power 0~30dBm,Software Programmable
Reading speed Single card average reading is 64bits, less than 6ms,
Software Programmable
Work mode reading Active and reading passive, Software Programmable
Communication Ports N:Wiegand26/34/98, RS232/RS485 ,USB
E:Wiegand26/34/98, RS232/RS485,TCP ,USB
Input interface 1 way trigger input
Reading range >12m
Status indicators buzzer
Antenna 10dbi circular polarization antenna
Power supply DC+7~12V
Size 240mm×420mm×56mm
Weight 1.55 Kg(Package:3kg)
Operation Temp -20℃~+70℃



What we focused(Zebra,Honeywell,Symobol and self-developed Yanzeo):

1.RFID products(tags,reader writer)

2.Barcode Scanner;

3.PDA,mobile computer

4.Printer parts

We are looking for agents in various countries around the world. OEM orders and global cooperation are available.We have lot stock and offer stable supply. If any interest, pls contact us. We would reply you within 24 hours as soon as possible.

Note:

1) Every item is tested strictly before shipping

Need the more quantity please contact us,will provide the best price.
